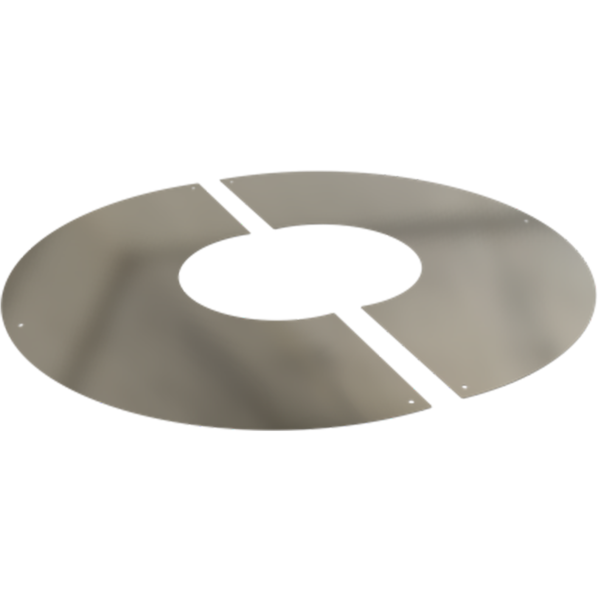

Description 2pc. Round Fixed Finishing Plate (150mm) 90 degree – 150mm The Round Finishing Plate comes in two parts and is used to tidy the area around the flue as it passes through a non-combustible wall. This plate is attached to the wall where the flue is passing through at a fixed 90 degree angle. Use silicone and screws to secure against the wall. It is 150mm wide. Product Information APPLICATION – For use on solid fuel and gas/oil appliances. e.g., woodstoves, gas coal effect fires, oil and gas boiler, and any solid fuel appliances. CONSTRUCTION – Outer skin is made from 304 grade stainless steel and is 0.4mm thick. Inner skin is made from 316 grade stainless steel and is 0.4mm thick. Insulation is compressed rockwool giving a density of 200kg/m3 TWPro / 128Kg/m3. All parts are fully welded. Distance to combustibles is 50mm TWPro, 60mm on KC. APPROVALS – TWPro is HETAS Approved and is CE marked. Designation Number – TWPro EN1856-1 T600 N1 W V2 L50040 G50. TWPro EN1856-1 T200 W V2 L50040 O20. KC EN1856-1 T600 N1 W V2 L50040 G60. KC EN1856-1 T200 W V2 L50040 O20. INSTALLATION – TWPro Twin Wall Insulated Chimney parts are secured together by using a Locking Band. Make sure that you keep the required distance from the outside of the flue to any combustible material (wood, plasterboard). Product Details: Designation: 55-d-118_dims, 15-d-118v2 System: ERPucGCRqCc|UlWFbx_Qwro|9SY0xka-sxU Material: Other tubes, pipes, and hollow profiles (e.g., open seam or welded, riveted, or similarly closed), of iron or steel Dimensions: 10mm x 510mm x 310mm Distance to Combustibles: 0.75
